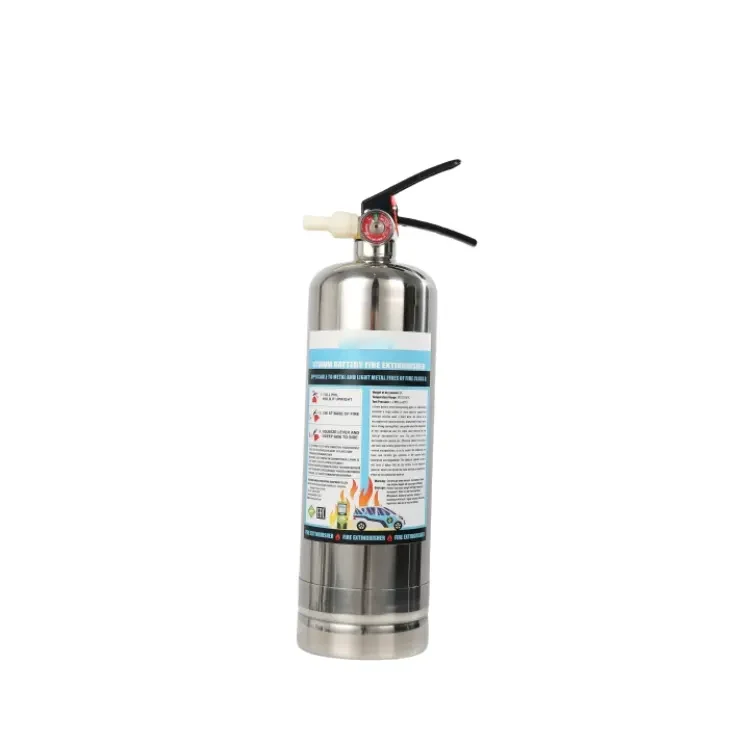

2 L stainless steel lithium-battery fire extinguisherA specialist product range
Lithium-battery fire equipment
Portable, wheeled and aerosol product families for buyers specifying lithium-battery fire equipment. Match the product to the battery, installation and test requirements of the actual application.
Portable1 L to 9 L
Wheeled25 / 30 / 45 / 50 L
AerosolSeparate battery series
01 / COMPARE OPTIONS
Find your configuration.
Use these series references to prepare the enquiry. Select the required market series and documentation alongside the product.
Portable lithium-battery series
| Capacity | Diameter | Cylinder height | Working / test pressure | Enquiry |
|---|---|---|---|---|
| 1 L | 85 mm | 283 mm | 14 / 25 bar | Ask |
| 2 L | 110 mm | 335 mm | 14 / 25 bar | Ask |
| 3 L | 130 mm | 353 mm | 14 / 25 bar | Ask |
| 4 L | 140 mm | 420 mm | 14 / 25 bar | Ask |
| 6 L | 163 mm | 450 mm | 14 / 25 bar | Ask |
| 9 L | 180 mm | 545 mm | 14 / 25 bar | Ask |
Manufacturer catalogue reference: SUS304 cylinders; stated operating range 0°C to +55°C. Agent, test evidence and suitability must match the selected product.

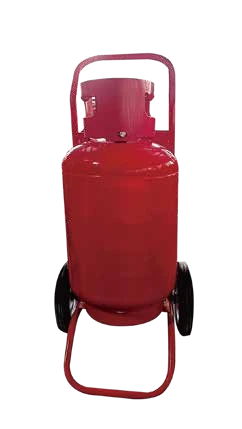

Wheeled lithium-battery series
| Capacity | Diameter | Cylinder height | Working / test pressure | Enquiry |
|---|---|---|---|---|
| 25 L | 273 mm | 665 mm | 15 / 27 bar | Ask |
| 30 L | 273 mm | 655 mm | 15 / 27 bar | Ask |
| 45 L | 325 mm | 825 mm | 15 / 27 bar | Ask |
| 50 L | 325 mm | 918 mm | 15 / 27 bar | Ask |
Catalogue dimensions are not a battery-capacity or fire-performance claim.
02 / PROCUREMENT APPLICATIONS
Match the product
to the task.
Project & equipment buyers
Share project requirements and evidence needed for acceptance.
Specialist distribution
Select the portable, wheeled or battery-aerosol family before matching a model.
03 / DOCUMENTS & DETAILS
Take the details
to your team.
Manufacturer product catalogue
HONGDUN product catalogue, 2026. Relevant printed pages: 11–12 and 27–28.
Request the catalogueFor a specification sheet, test report or certificate, tell us the exact model and required standard. Catalogue series names do not replace model-specific documents.
Request product documents04 / COMMON QUESTIONS
Before you enquire.
Does one product suit all battery fires?
Selection depends on battery chemistry, capacity, enclosure, installation and required test evidence. Catalogue ranges do not imply universal suitability.
Is this the DIN-rail aerosol range?
Battery aerosol devices form a separate series. Do not substitute devices by agent weight alone.
Which documents can I request?
Ask for the selected model specification, agent information and relevant test or certificate documents. State project acceptance criteria.
