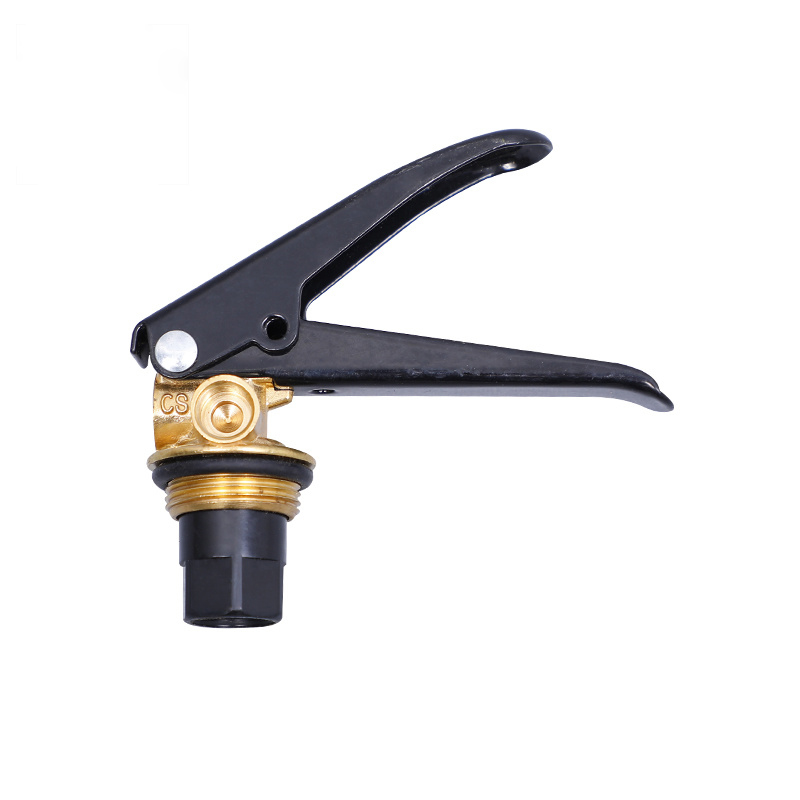

Dry powder extinguisher valve — connection referenceParts for professional procurement
Extinguisher components & servicing equipment
Complete uncharged extinguisher sets, components and servicing equipment for professional buyers. Start with the product type, capacities, estimated quantities and needed date; match the final configuration to the selected series.
ValvesDry powder / water
ComponentsCylinders & discharge
ServicingBrackets & filling
01 / COMPARE OPTIONS
Find your configuration.
Use these series references to prepare the enquiry. Select the required market series and documentation alongside the product.
Parts and servicing references
| Product | Reference range | Matching details | Enquiry |
|---|---|---|---|
| Dry powder valve | Archived product: 1–8 kg range | Thread, cylinder neck, pressure and release assembly | Ask |

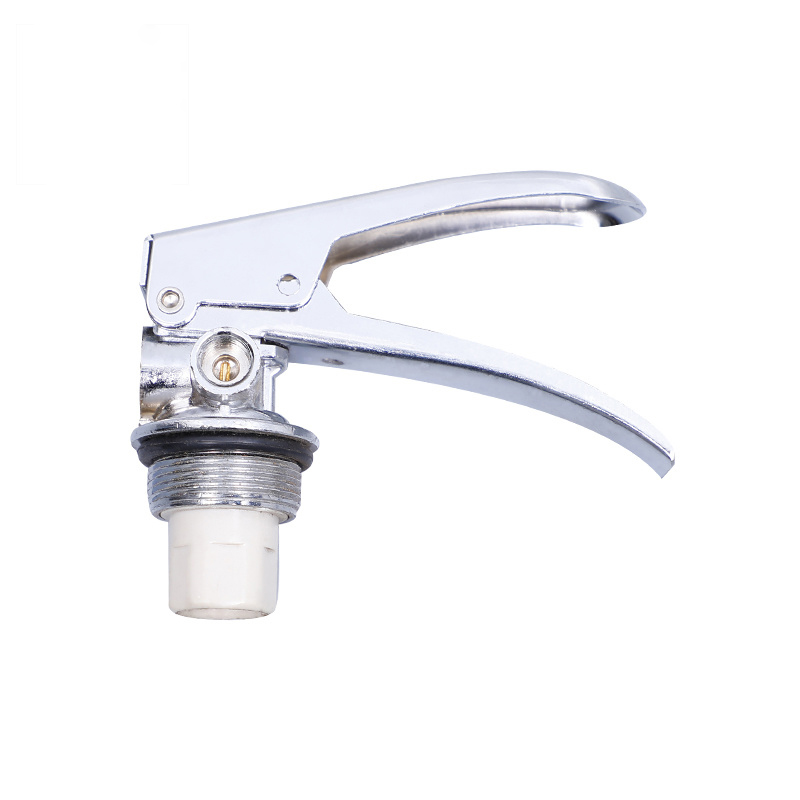

| Water-based valve | Archived product: 1–9 L range | Thread, seal, cylinder and agent compatibility | Ask |

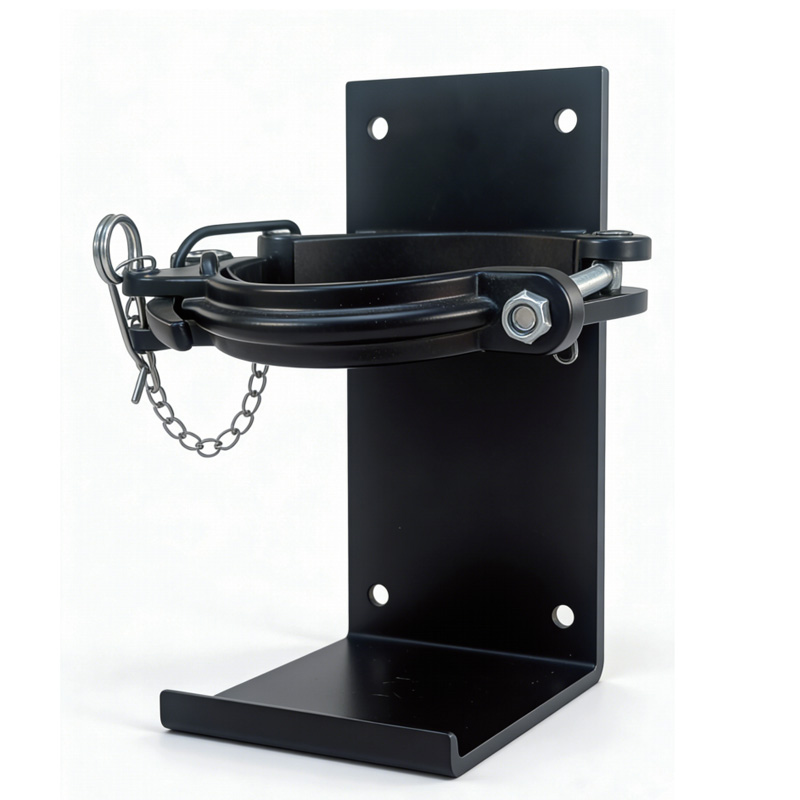

| Heavy-duty bracket | Archived reference: 2–2.5 kg | Cylinder diameter, mounting and retention | Ask |

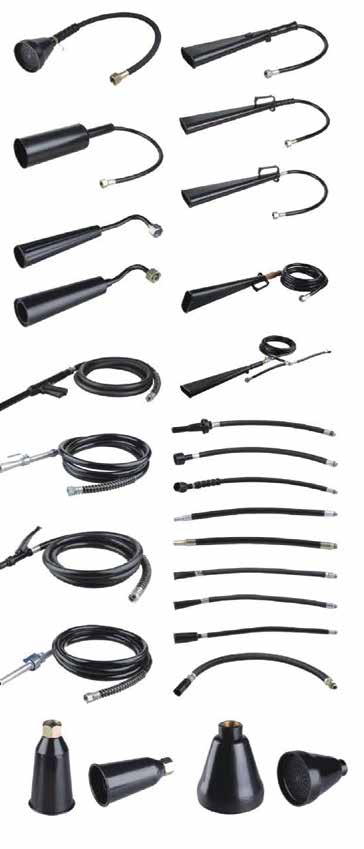

| Discharge hoses & horns | Manufacturer catalogue components | End fittings, hose length and compatible model | Ask |
| Nitrogen-filling equipment | Manufacturer catalogue equipment | Inlet / outlet, operating requirements and cylinder valve | Ask |
| Complete empty extinguisher sets | Uncharged cylinder, valve and discharge assembly | Type / capacity, quantity and matching configuration | Ask |
Capacity ranges identify the referenced product line, not universal compatibility. Empty-extinguisher requirements are matched as complete uncharged sets; individual parts are specified when expressly required.
Foot-ring steel cylinder references
| Nominal dry powder capacity | Cylinder diameter / height | Working / test pressure | Enquiry |
|---|---|---|---|
| 1 kg | 90 / 240 mm | 14 / 25 bar | Ask |
| 2 kg | 110 / 300 mm | 14 / 25 bar | Ask |
| 3 kg | 130 / 320 mm | 14 / 25 bar | Ask |
| 4 kg | 130 / 400 mm | 14 / 25 bar | Ask |
| 5 kg | 150 / 450 mm | 14 / 25 bar | Ask |
| 6 kg | 140 / 410 mm | 14 / 25 bar | Ask |
| 9 kg | 160 / 550 mm | 14 / 25 bar | Ask |
| 12 kg | 182 / 600 mm | 14 / 25 bar | Ask |
Manufacturer foot-ring cylinder catalogue reference. Nominal capacity is for identifying the intended dry powder series; these are cylinder dimensions, not filled-extinguisher specifications. Other cylinder and empty-assembly series are quoted separately.
Complete uncharged set references
| Type / nominal capacity | Supply condition | Set reference | Enquiry |
|---|---|---|---|
| Dry powder — 3 kg | Uncharged complete set | Cylinder, valve and discharge assembly | Ask |
| Dry powder — 6 kg | Uncharged complete set | Cylinder, valve and discharge assembly | Ask |
| Dry powder — 9 kg | Uncharged complete set | Cylinder, valve and discharge assembly | Ask |
| CO₂ — 3 kg | Uncharged complete set | Cylinder, valve and discharge assembly | Ask |

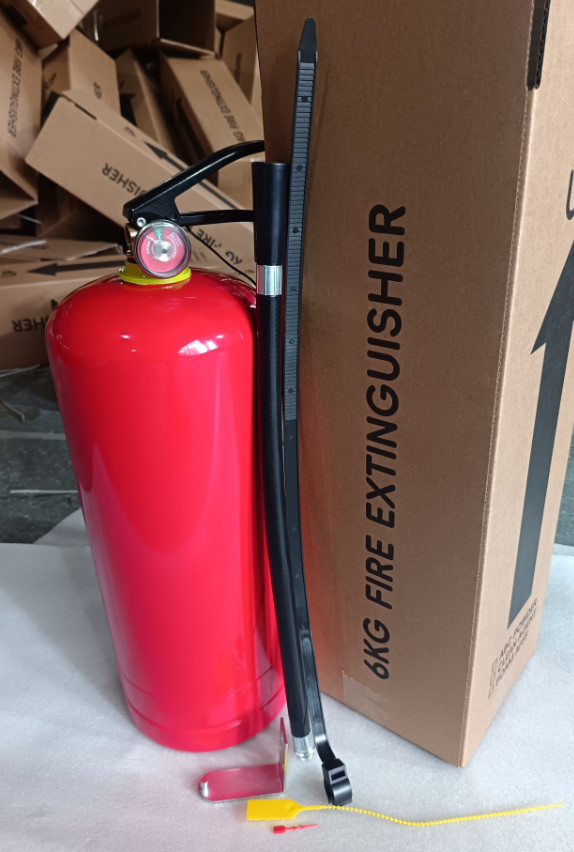

Existing complete-set product references. The photograph shows a 6 kg dry powder set with a separate hose and bracket; it is not a filled unit or a photograph of every size. Match the final components, labels and export supply arrangement to the selected type and capacity.
ORDERING DETAILS
Specify the complete
configuration.
Use the series reference, then agree the exact product, packing and documents for your order.
Complete empty sets
Start with type, capacity and quantities for the complete uncharged configuration.
Servicing equipment
Describe filling connections, intended cylinders and operating requirements.
Configuration to confirm
- Part photo / model, quantity and required date
- Thread, key dimensions, pressure and compatible cylinder
- Type / capacity and estimated quantities for complete uncharged sets; individual parts if expressly required
- Destination and packing requirements
Packing & quotation
Quote individual parts, cylinders and complete assemblies as distinct line items. Confirm component protection, carton quantities, gross weight and dimensions.
A useful starting brief
Product or set type, capacities, estimated quantities and needed date; include an existing model or photo if available.
Send this product enquiry02 / PROCUREMENT APPLICATIONS
Match the product
to the task.
Servicing businesses
Start with a reference photo, quantity and needed date, then match the connections and compatible extinguisher.
Empty extinguisher sets
Prepare quantities by type and capacity for a complete uncharged set, including the cylinder, valve and discharge assembly.
Equipment procurement
Match filling equipment, brackets and discharge components to the intended product and working requirements.
03 / DOCUMENTS & DETAILS
Take the details
to your team.
Manufacturer product catalogue
HONGDUN product catalogue, 2026. Relevant printed pages: 33–36, 38.
Request the catalogueFor a specification sheet, test report or certificate, tell us the exact model and required standard. Catalogue series names do not replace model-specific documents.
Request product documents04 / COMMON QUESTIONS
Before you enquire.
Will a valve fit every extinguisher of the same capacity?
No. Thread, neck dimensions, pressure, seal and discharge configuration must match.
What is included in an empty extinguisher enquiry?
We start with a complete uncharged set: cylinder, valve and discharge assembly. Send the type, capacities and estimated quantities; specify individual cylinders or parts when those are expressly required.
Can I order from a reference photograph?
A photograph is a useful starting point. Include quantity and needed date; key connection and dimension details can then be matched.
